Classic Refuse Trucks FAUN-SITA

FAUN-SITA

Early FAUN-Sita tilt-to-dump style paddle-packer on Mercedes-Benz chassis

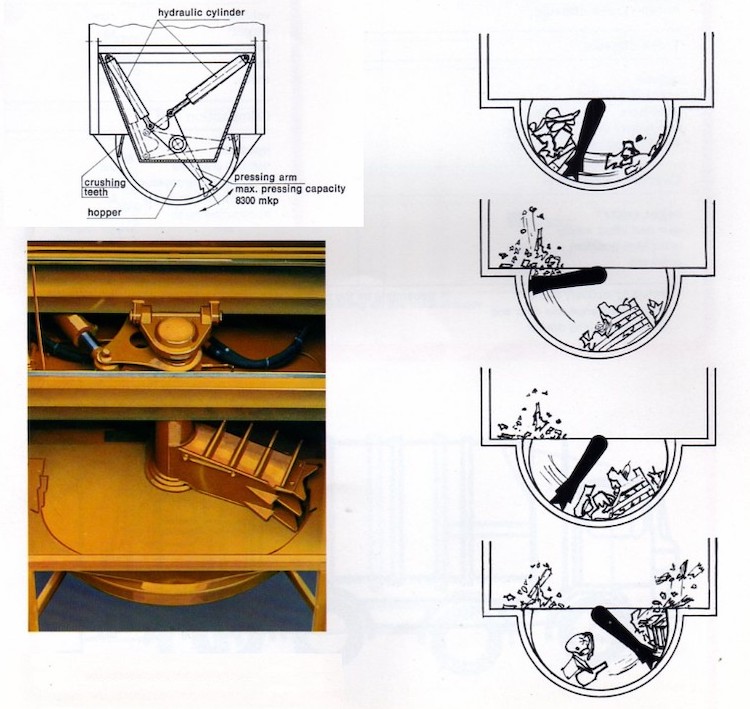

By the 1970s, FAUN had partnered with a French firm to produce a paddle-packer rear loader under the FAUN-Sita brand name. Based on the modern new Sita 6000, it was initially built as as a tilt-to-dump body, with a simple and effective packing mechanism operating at a pressure of around 1,200 PSI. In the drawings below, note how the refuse is always being compacted, no matter which direction the paddle is moving:

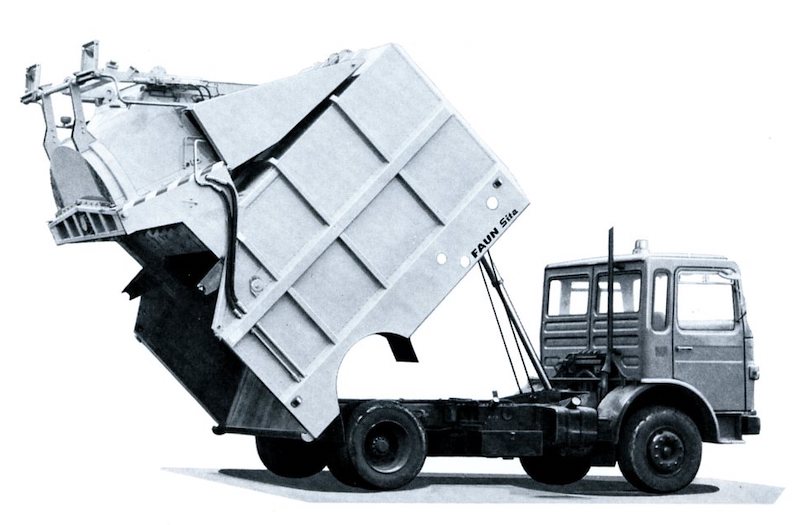

FAUN-Sita used fixed cables to automatically open tailgate as body was raised, a vestige of 1920s technology

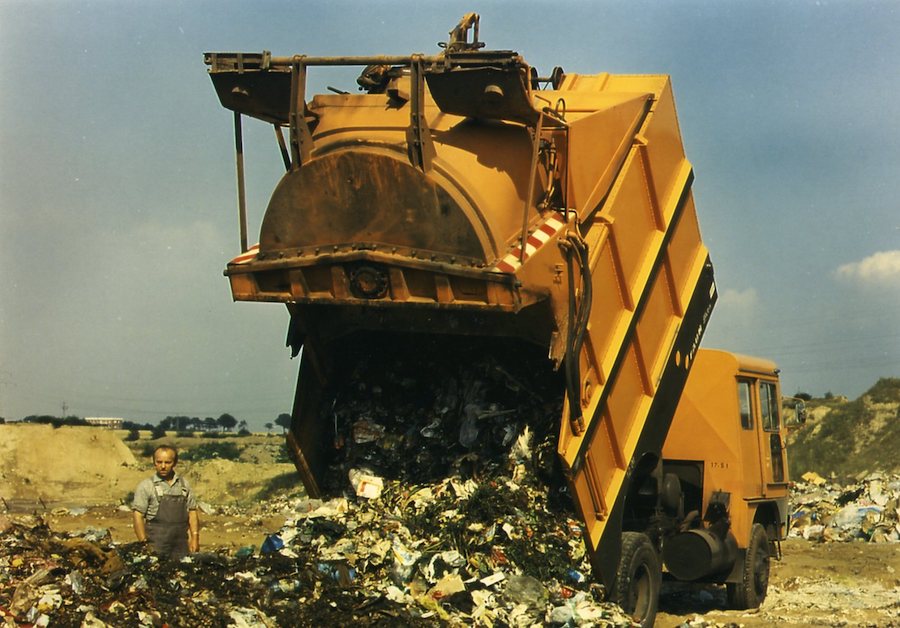

Discharging at a landfill

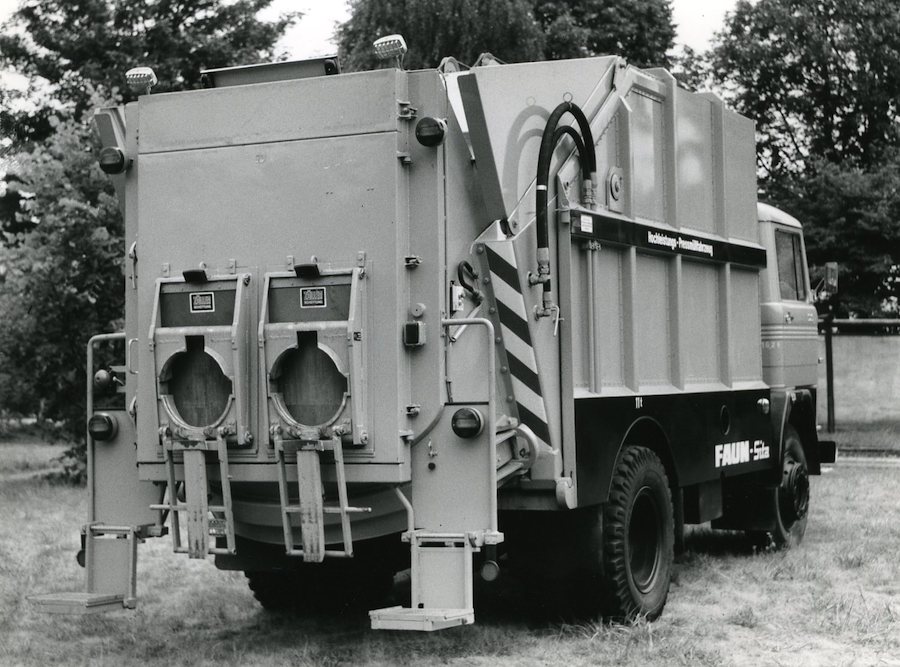

FAUN-Sita with a manually-operated twin bin tipper; hydraulic versions were also available

FAUN-SITA EJECTION DISCHARGE REAR LOADERS

In line with changes made to the French-market Sita 6000 body, the FAUN-Sita series adopted ejection-discharge in the early 1970s. Three models were offered; the 1200P (12 cbm capacity), 1600P (15 cbm) and the 2000P (19 cbm). All models now had a slightly higher working hydraulic pressure (1500 PSI), which was likely needed to move the compaction-ejection barrier. A fully-automatic, hydraulic locking/un-locking tailgate accompanied the new body, replacing the cable system of the original design.

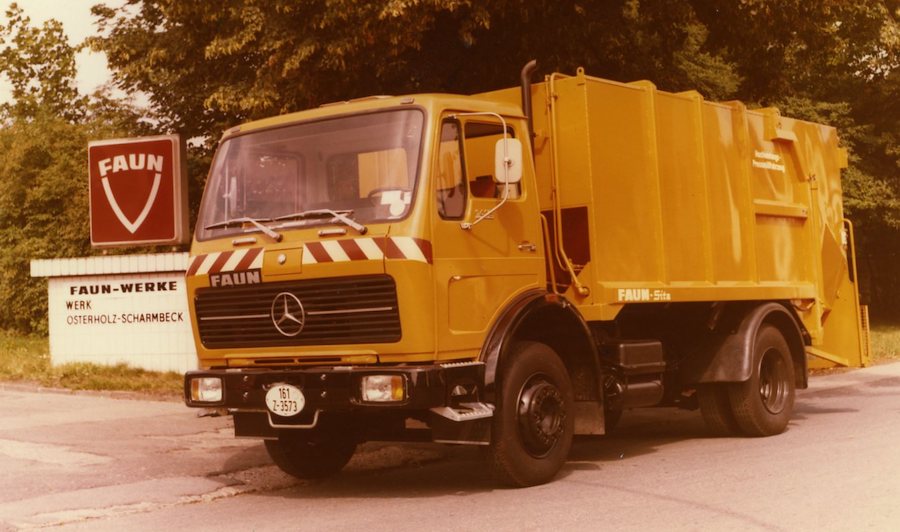

The smallest FAUN-Sita was this 1200P (12cbm) which featured a shorter body height

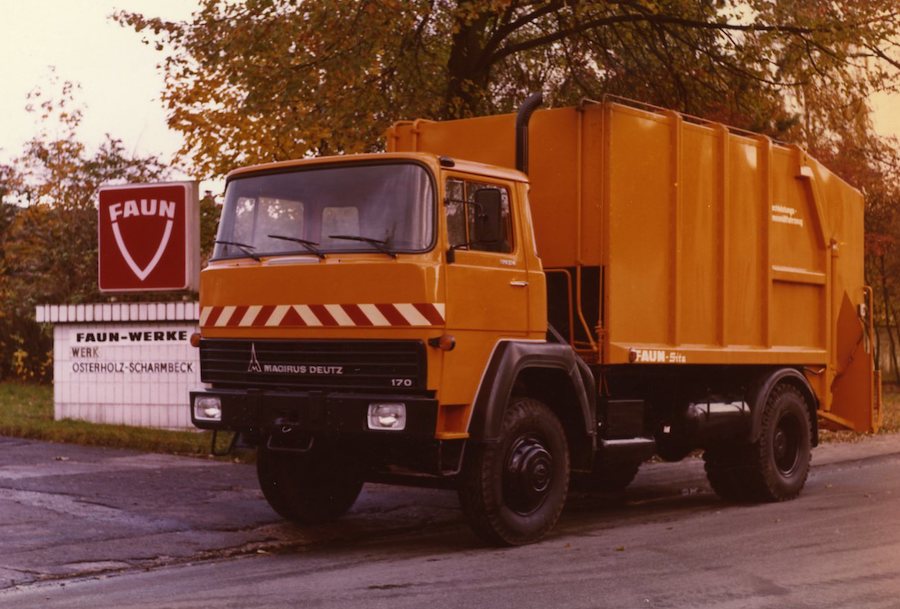

Next up was the 1600P (15cbm) shown here on a Magirus-Deutz 170 cabover

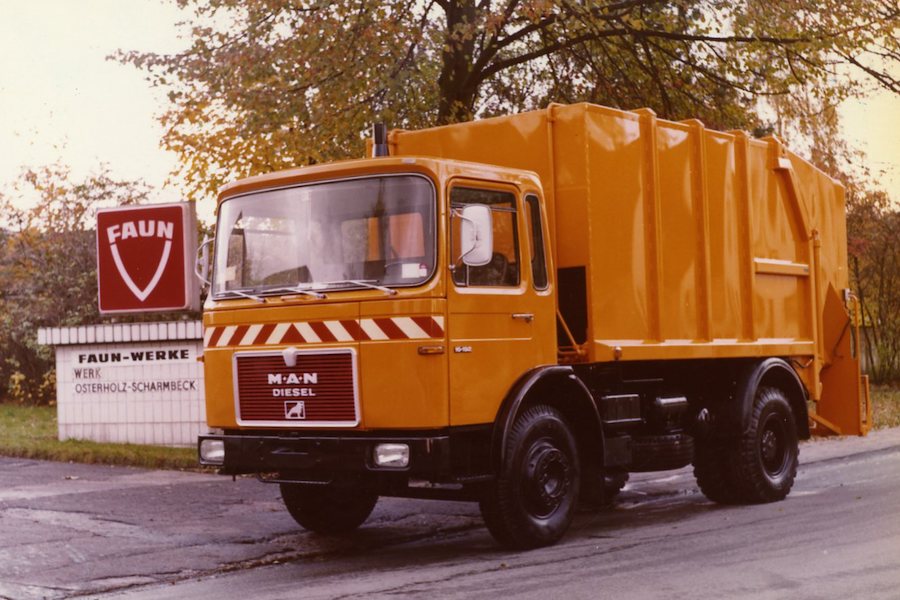

Another 1600P on a M-A-N chassis

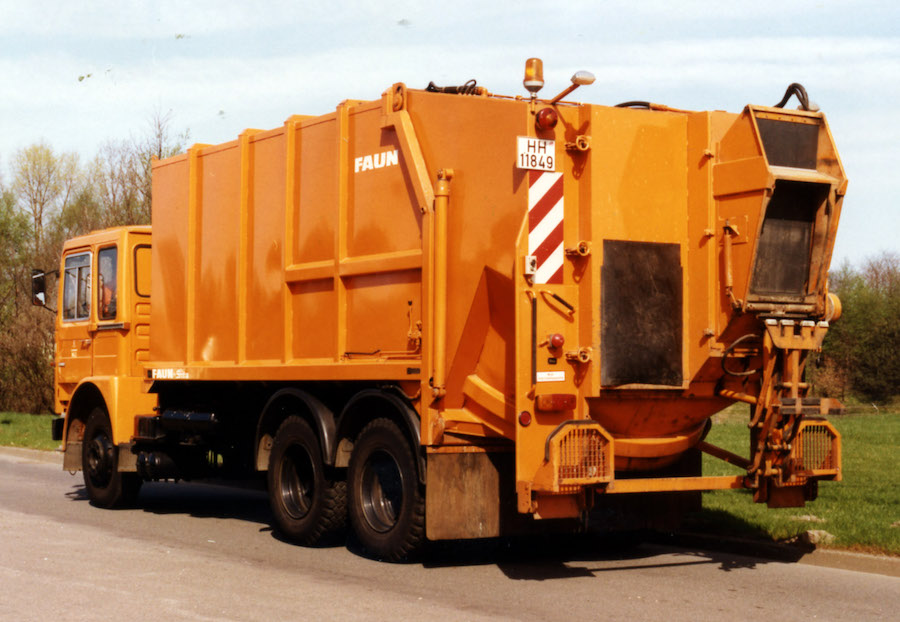

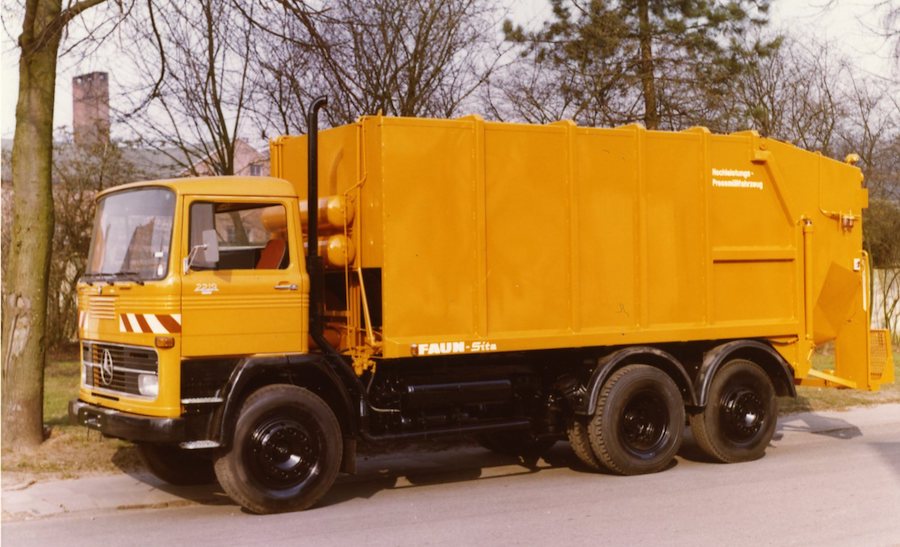

KIng of the hill was the 2000P, a 19-cubic meter brute, shown here on a twin-steer Mercedes

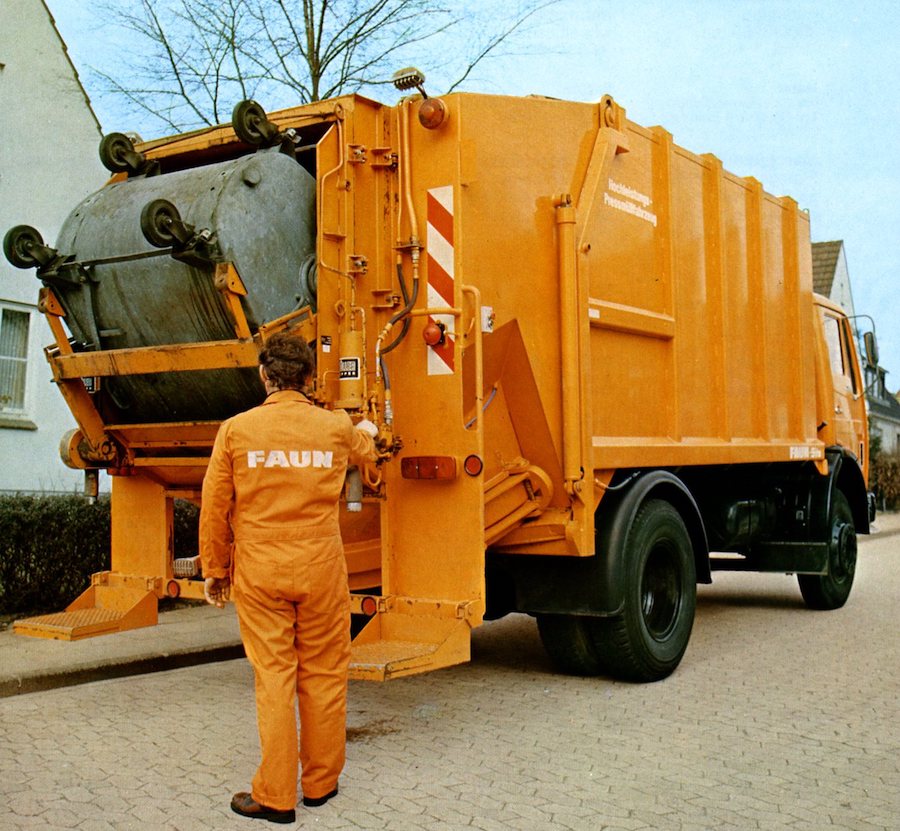

A full compliment of Zöller binlift equipment was available, with interchangeable rear doors for easy conversion.

2000P with combination binlift and hand-loading door

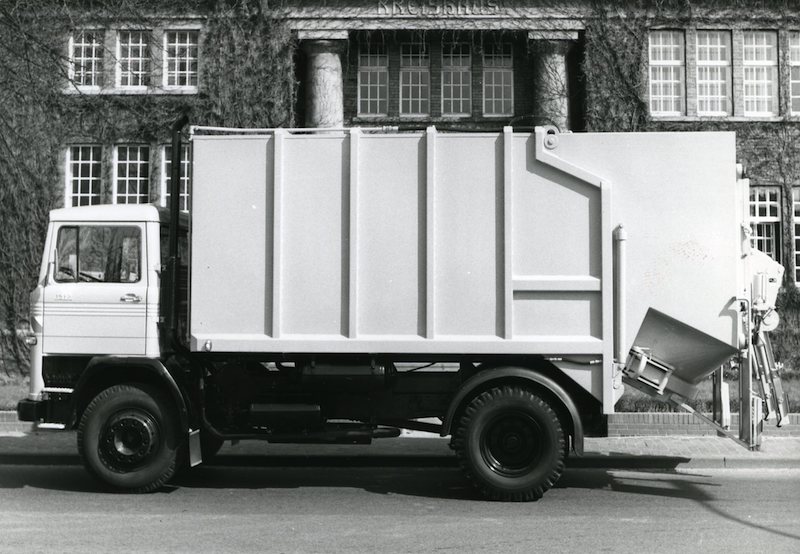

Side view of a FAUN-Sita 1600P with tailgate locked

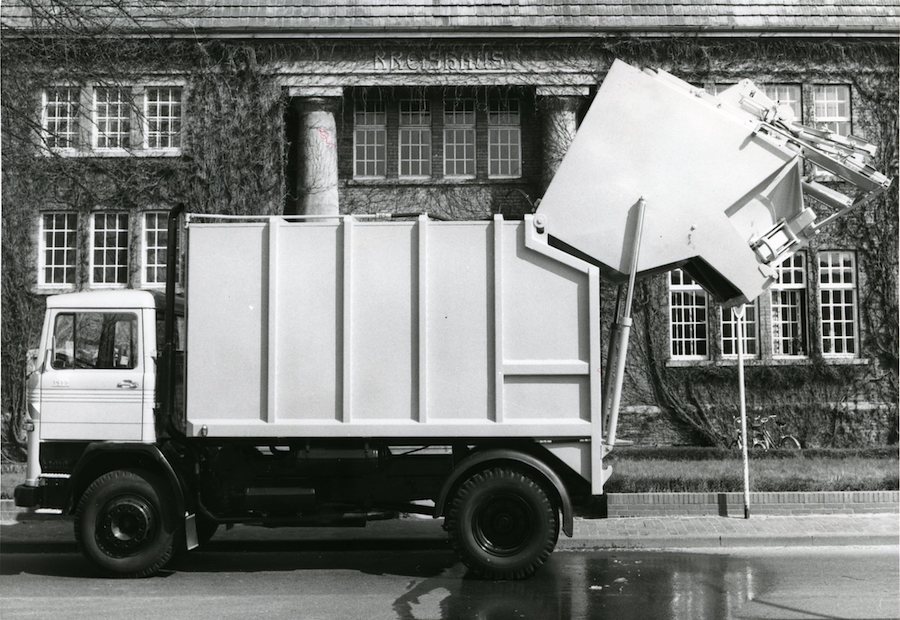

Fully opened; lift cylinders slide tailgate upward slightly to automatically un-lock and then lift the structure

REFERENCES

SITA album at Classic Refuse Trucks

7/4/11 (revised 4/2/23)
